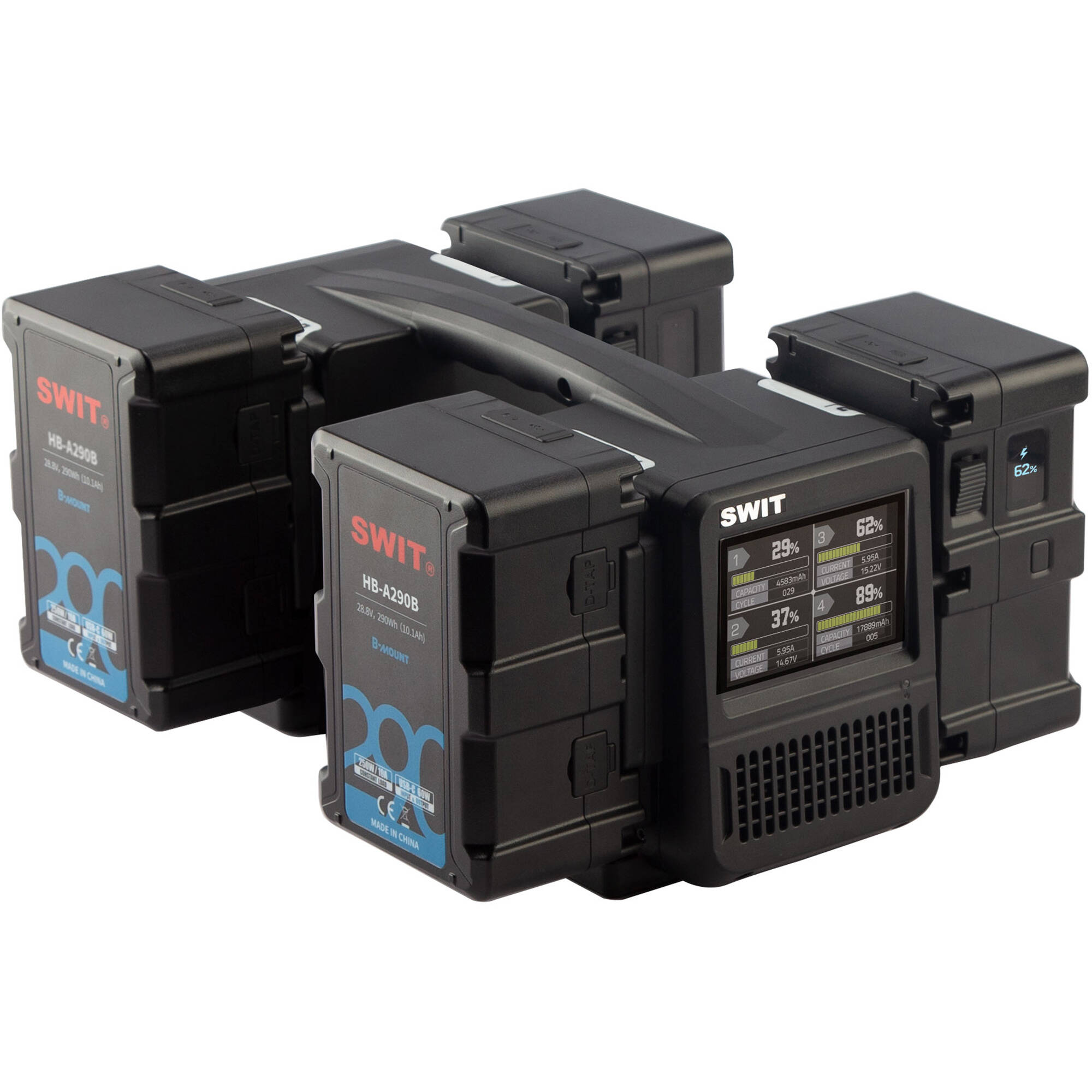

SWIT B-Mount Battery Kit

The SWIT B-Mount battery kit includes four (4x) 290Wh B-Mount batteries and a 4-bank Fast Charger. It is compatible with the ARRI Alexa 35 and other B-Mount cameras and accessories.

Description

The SWIT B-Mount battery kit includes four (4x) 290Wh B-Mount batteries and a 4-bank simultaneous Fast Charger.

Each B-Mount battery is 28.8V, 290Wh. Included are two 16V D-Tap accessory outputs, 5V USB accessory outputs, circuit protection, and 10A continuous load. The charger supports 100W fast charging and simultaneous charging of all four B-mount batteries. In addition, a 3.5″ LCD status display.

The HB-A290B has several powerful features, including multiple circuit protections. These prevent overcharging. In addition, an OLED status display, and a built-in flashlight to illuminate the mount when you are installing the battery. There are also two 16V D-Tap outputs and one 5V USB Type-A port for powering accessories. Finally, the USB Type-C port powers accessories or charges the battery with a separately available charger.

ARRI-Standard B-Mount Battery

The B-mount battery is a new industry standard used by ARRI and the wider industry. It provides high voltage support and a reliable lock system. The 28.8V (22-33.6V) high voltage matches all ARRI cameras and lights and equivalent high-powered cine equipment. This by effectively reducing current, providing reliability and long life.

The HB-A290B B-Mount battery has a large 290Wh capacity. It supplies at least a 250W/10A constant high load for cine cameras and devices.

You can power a laptop via the USB Type-C output of the HB-A290B battery. It supports 5V 3A, 9V 3A, 12V 3A, 15V 3A, and maximum 20V 3A voltages. In addition, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, and SCP protocols.
