Atlas Orion Anamorphic Lens Kit

The Atlas Orion Series Anamorphic Lenses by Atlas Lens Co. are true Front Anamorphic lenses built to be a universal filmmaking tool. Supplied in PL-mount for cameras such as the ARRI Alexa or Red DSMC2, or EF-mount for Canon Mount Cinema Cameras.

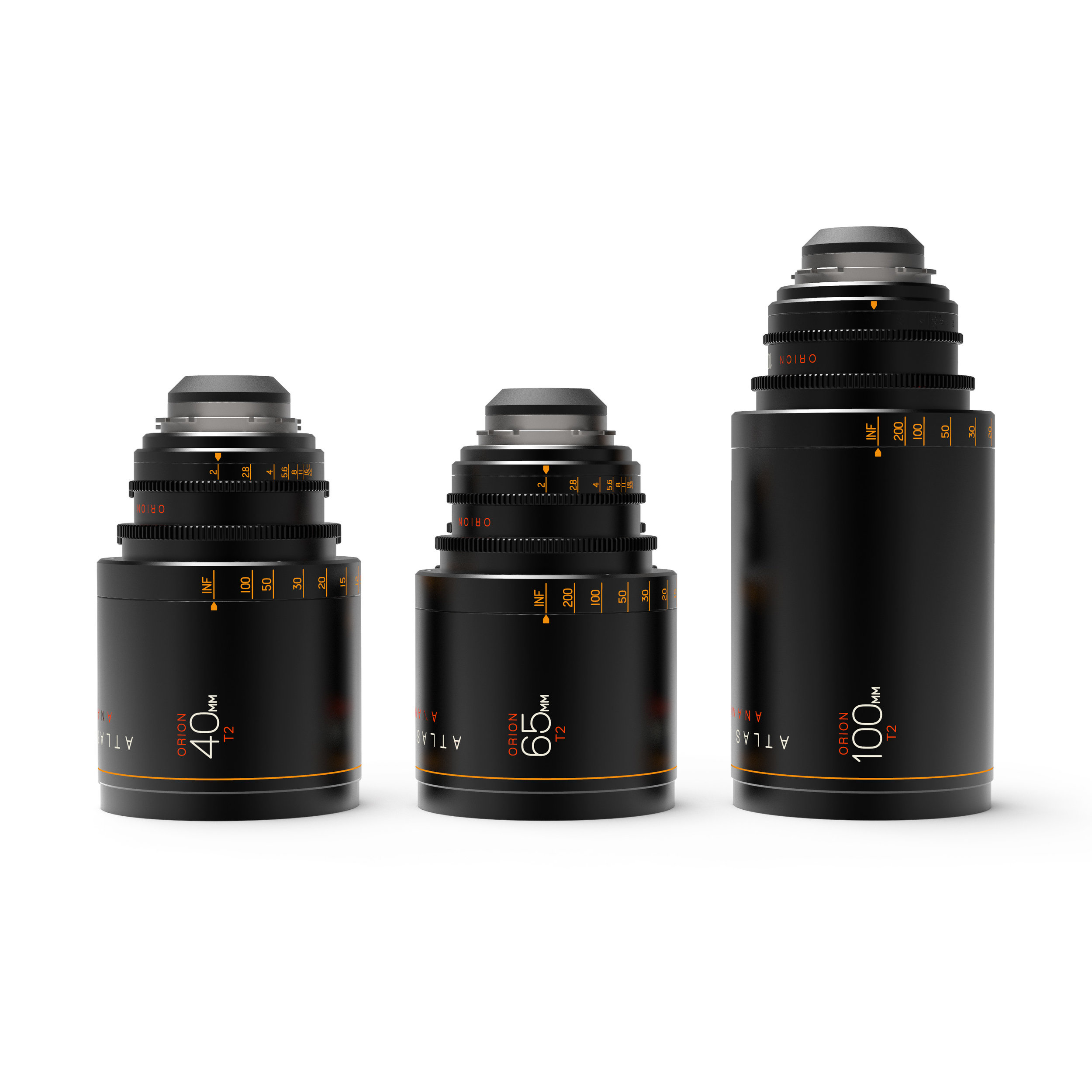

The Atlas Anamorphic Kit includes 40, 65, and 100mm T2 lenses.

$650 / day

Quantity: 2

* Hire rates include GST, but exclude any insurance or delivery costs

** If you happen to find a better rental price elsewhere, let us know and we'll do our best to match or beat it.

Description

The Atlas Orion Anamorphic Lens series delivers strikingly beautiful bokeh and signature but controlled flare.

Designed to be a universal filmmaking tool – the lenses are available in PL mount as well as being interchangeable to Canon EF mount, or adapted to Sony E Mount or Micro 4/3 cameras, and are even designed to accommodate the rotating mirror shutter of 35mm Motion Picture Film Cameras following Arri PL Flange requirements. The lenses have a 31mm image circle coverage, larger than a S35mm Image Circle (Alexa Open Gate full height Coverage).

Focus has a deep 270° travel rotation, with Cine pitch 0.8 mod gearing on both iris and focus rings, spaced to allow simultaneous drive control even when two motors are mounted on the same side of the lens.

The lenses are available in 40, 65, and 100mm options with the following specifications:

40mm

  • Min focus: 2 ft / 0.56 m
  • Weight: 5 lbs / 2.2 kg
  • Length: 7.4″ / 18.9 cm

65mm

  • Min focus: 2.75 ft / 0.84 m
  • Weight: 5 lbs / 2.2 kg
  • Length: 7.2″ / 18.4 cm

100mm

  • Min focus: 3.5 ft / 1 m
  • Weight: 6.7 lbs / 3 kg
  • Length: 10″ / 25.4 cm

All lens have the following specs:

  • T-stop range: T2 – T16
  • Front diameter: 114mm
  • Alexa Sensor Coverage: 4:3 ANA (23.76 x 17.89 mm)
  • RED Sensor Coverage: HELIUM 8K 6:5 ANA, GEMINI 5K 6:5 ANA, MONSTRO 7K+ 6:5 ANA
